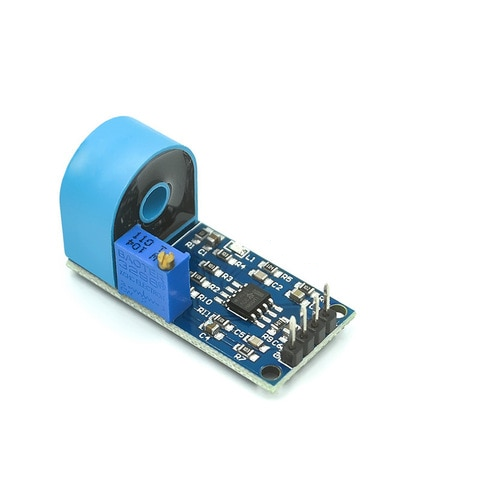

ZMCT103C 5A AC Current Sensor Module – High Precision

Original price was: ₵45.00.Current price is: ₵28.00.

30 in stock

The ZMCT103C 5A AC Current Sensor Module provides high-precision analog output for measuring AC currents up to 5A, perfect for Arduino-based power monitoring.

Categories: Power, sensors

Description
Reviews (0)

Description

The ZMCT103C 5A AC Current Sensor Module is a compact, high-precision device designed to measure AC currents up to 5A with excellent accuracy and consistency. Based on the ZMCT103C IC, this module operates on the principle of magnetic field variation between primary and secondary coils, functioning as a current transformer with a 1000:1 turns ratio (5A input produces 5mA output). It features a donut-shaped design with epoxy encapsulation, where the wire to be measured passes through the central hole, acting as the primary coil. The module includes an onboard precision microcurrent transformer, a sampling resistor, and an OP07 operational amplifier circuit for signal amplification, with an adjustable potentiometer to fine-tune the amplification factor (up to 100 times, max output ≤1/2 VCC).

Operating on a 5V supply, it provides an analog voltage output proportional to the AC current, measurable via an MCU’s analog input pin. The module has four pins: two grounds (to be shorted and connected to the MCU ground), VCC (+5V), and OUT (analog output). It supports a linear range of 0-10A, with a rated output current of 5mA at 5A input, and a winding DC resistance of 155Ω at 20°C. With a maximum primary current of 20A at 50/60Hz and a breakdown voltage of 4.5kV, it ensures high galvanic isolation and low noise. Ideal for power monitoring, overcurrent protection, energy metering, and motor control, it pairs seamlessly with Arduino for DIY projects. Connect VCC to 5V, GND to ground, OUT to an analog pin (e.g., A0), and pass the AC wire through the hole. Use the EmonLib library for current calculations. This RoHS-compliant module, approximately 28x12x15mm, operates from -10°C to +50°C.

Note: Calibration with a multimeter is required, and a burden resistor (e.g., 100Ω) may be needed to convert the 5mA output to a measurable voltage.
